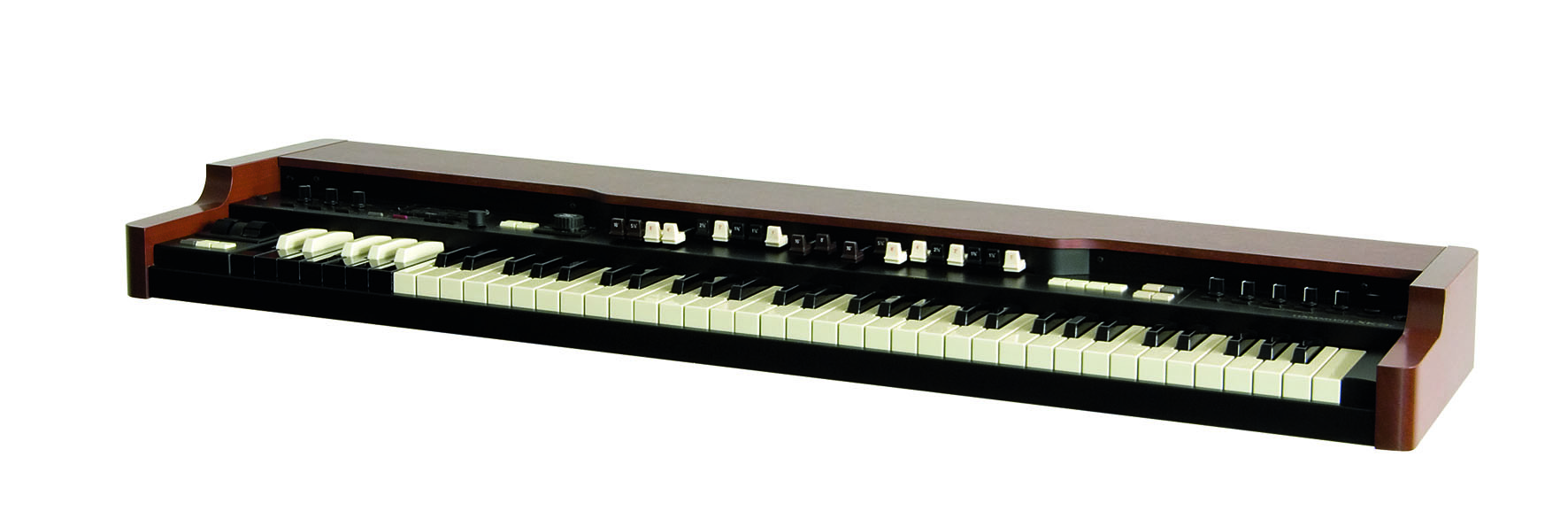

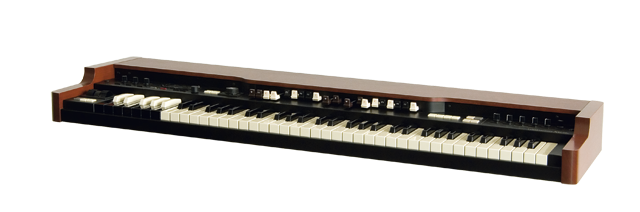

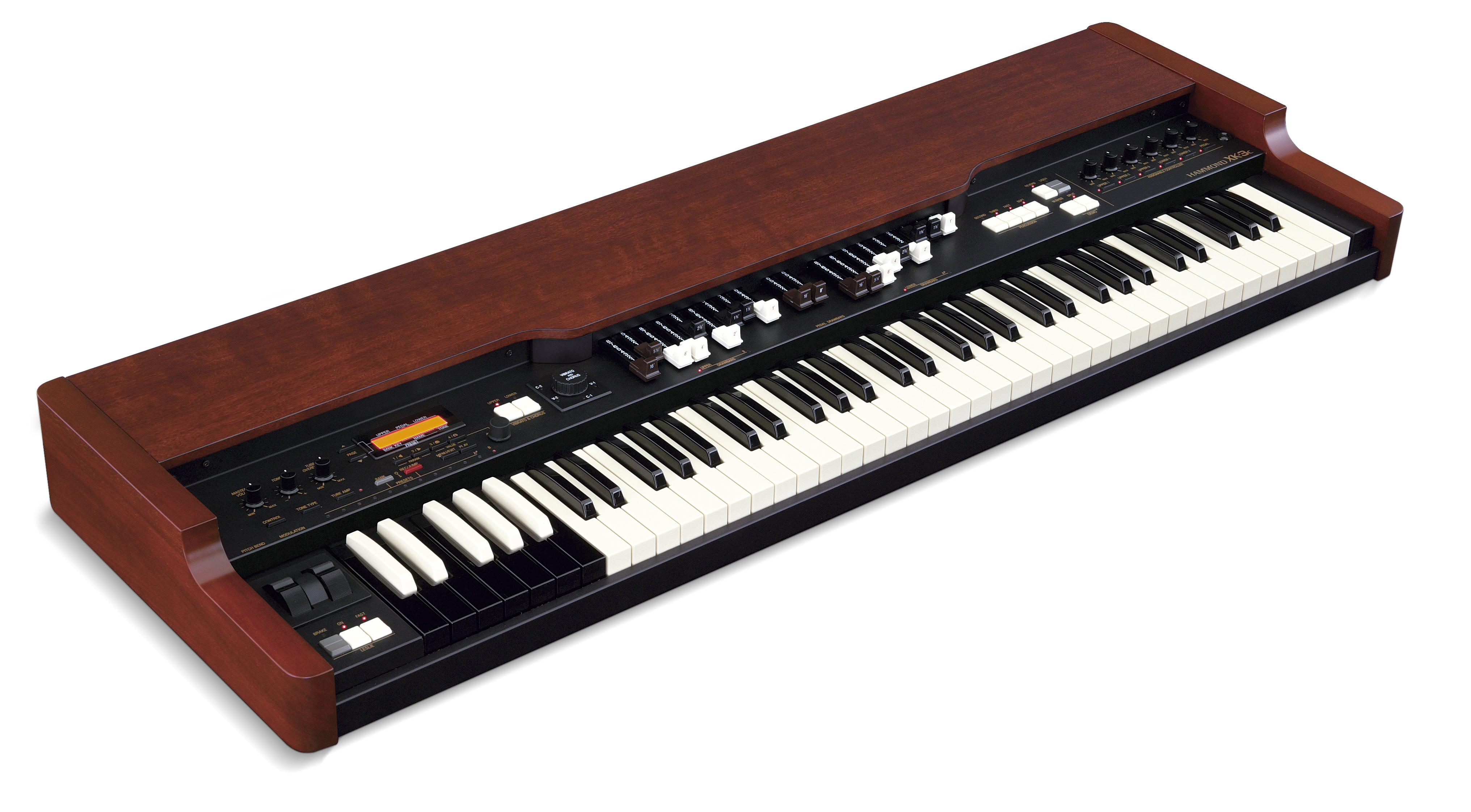

Specifications | |
KEYBOARD | 73 (61+12 Preset Keys) Water-fall Keys with Velocity |
DRAWBARS | 3 sets of Drawbars, 9-Upper, 9-Lower, 2-Pedal |
SOUND GENERATOR | Vase III sound generator creates 96 digital Tone-wheels™. Tone-wheel™ leakage-noise and motor-noise are adjustable wheel by wheel. |
PRESETS | Original B-3 reverse-colour preset-keys 11 Presets x 12 Banks + Cancel |
POLYPHONY | Full polyphony (unlimited) |
LESLIE© | Advanced digital Leslie© and scanner vibrato |
PREAMP & OVERDRIVE | New dual tube amp for pre-amplification and Leslie© overdrive |
REVERB | 10-Modes, Leslie reverb |
TONE CONTROL | Bass, Mid range, Treble, B-3 Tone Control |
SUSTAIN | Pedal Drawbars |
WHEEL | Pitch Bend, Modulation |

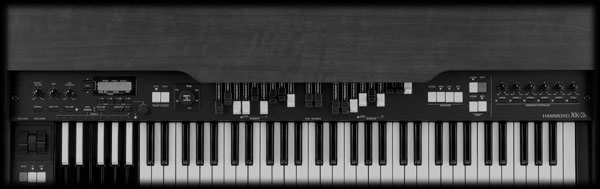

PANEL CONTROLS | LESLIE©: Slow/fast, on/off, break/thru, effect, send/return Vibrato/Chorus: Upper ON, Lower ON, V1, V2, V3, C1, C2, C3 with 6 position rotary knob, Tremolo, emphasis and depth can be adjusted Percussion: Second, third, decay fast, soft Control: Reverb, Manual bass, Split, User (pedal sustain), Demo Assignable controller for MIDI instrument: Upper 1,2,3, Lower 1,2, Pedal, on/off, Value knobs Effect: Tube amp, Tone type, reverb on Display switch: Page up/down, parameter value +/-, rotary-encoder, Menu/exit, play, rec, bank Volume control: Master volume, tone control, tube overdrive |
DISPLAY | 20-Character, 2-Line back-light LCD |
TERMINAL |
|
CARD SLOT | CompactFlash™ Card slot |
POWER SUPPLY | 230V (CE), 240V (BS) |
DIMENSIONS | 119cm(W) x 40cm(D) x 12cm(H) |
WEIGHT/FINISH | 18,5Kg / Walnut finish |
XK-3 ... in comparison | ||
XK-3 | XK-3c | |
Leslie | Digital Leslie© and scanner vibrato | Advanced digital Leslie© and scanner vibrato |
Pre-amp | Dual tube amp for pre-amplification and Leslie© overdrive | New dual tube amp for pre-amplification and Leslie© overdrive |
Reverb | 8-Modes | 10-Modes, Leslie reverb |
Tone Controls | Bass, Mid range, Treble, | Bass, Mid range, Treble, B-3 Tone Control |
Vibrato/Chorus | ON, V1, V2, V3, C1, C2, C3 with 6 position rotary knob | Upper ON, Lower ON, V1, V2, V3, C1, C2, C3 with 6 position rotary knob, Tremolo, emphasis and depth can be adjusted |
Controller | - | Assignable controller for MIDI instrument: Upper 1,2,3, Lower 1,2, Pedal, on/off, Value knobs |
Weigth | 19,5 Kg | 18,5 Kg |
Support | ||
Type | Description | Action |
Reset | Reset the instrument to the factory-defaults | Power-off the instrument. Press and hold the red 'REC/JUMP'-button and power-on the instrument. The display will show 'HAMMOND ORGAN Loading Default...' After 10 seconds the display will show the normal play-screen. |
