Specifications | |
SOUND ENGINE | MTW2 (Modelled Tone Wheel 2), Simultaneous Polyphony: 61 (Tone Wheel Organ) |
KEYBOARD | 61-key with velocity, semi-weighted, Square-front ("Waterfall"-style) |
ORGAN SECTION | [Parts] : 3 (Upper, Lower, Pedal) [Drawbars] : 1 set of 9 rows [Organ type] : Manual keyboard: 5 (TW, Vx, Farf, Ace, Pipe) Pedalboard: 3 (Normal, Muted, Pipe) [Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic |

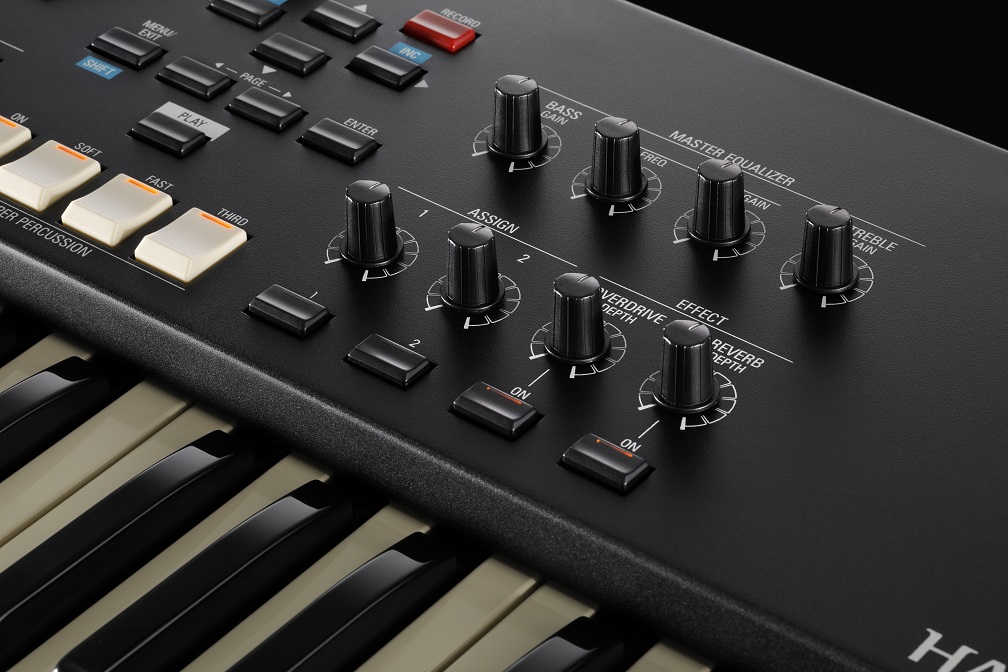

EFFECTS | [Patch] : Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer, Reverb [Master] : Master Equalizer |
KEY MAP | [Internal zone] : Transpose, Octave, Split, Pedal To Lower, Pedal Sustain [External Zones] : 3 Zones (assignable to each keyboard) |

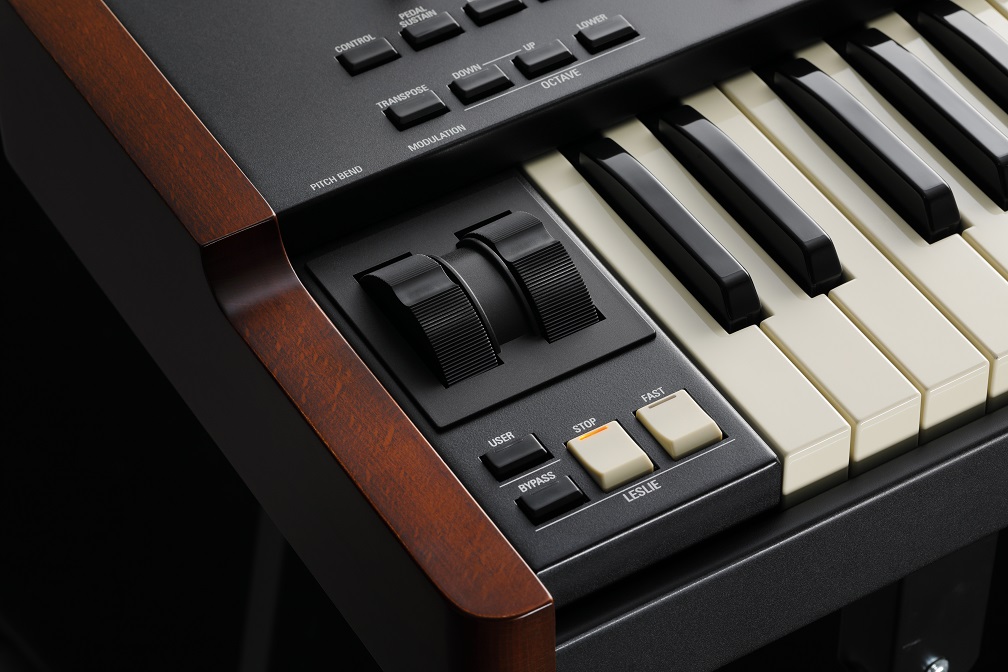

CONTROLLERS | Pitch Bend wheel, Modulation wheel, Leslie (Bypass, Stop, Fast) |
PRESET MEMORY | [Favorites] : 10 banks x 10 numbers (Patches), 10 numbers (Pages) [Patch] : Factory: 100, User: 100, Manual [Custom Tone Wheel] : Factory: 4, User: 4 [Custom Pedal Registration] : Factory: 4, User: 4 [Custom Pipe] : Factory: 4, User: 4 [Custom Cabinet] : Factory: 8, User: 8 |
STORAGE | USB memory |

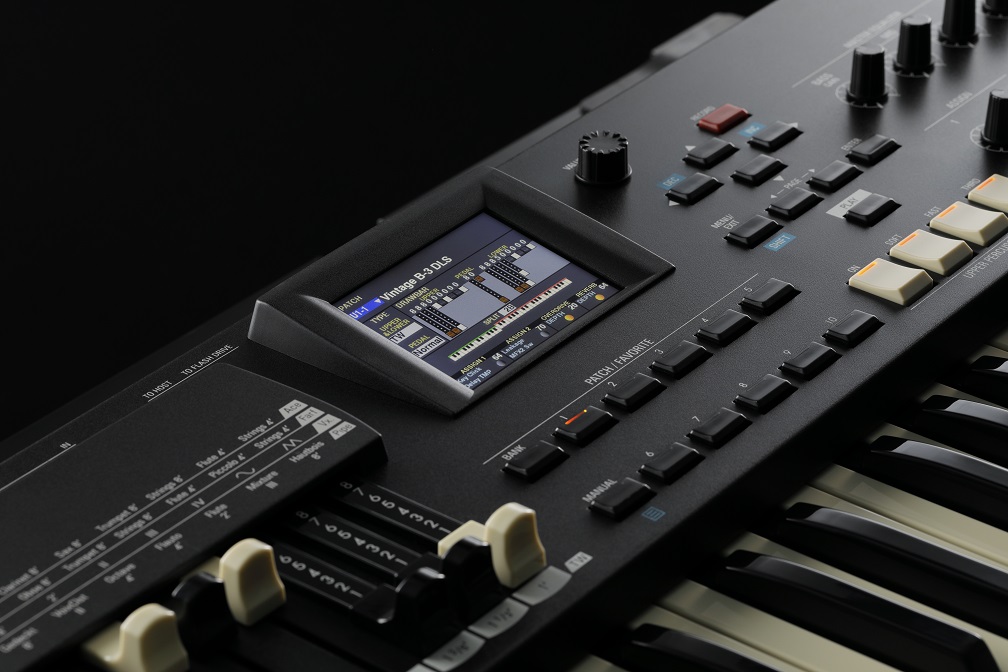

DISPLAY | 320 x 240 pixel |

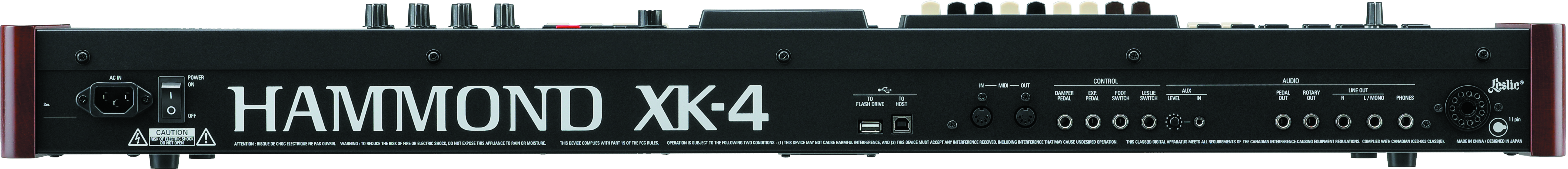

CONNECTIONS | [MIDI] : IN, OUT [USB] : To Host [Audio] : Line Out L, R, Headphones, Rotary Out, Pedal Out, Aux In (with Volume control) [Leslie] : 11-pin, 1 or 3 channel compatible [Others] : Leslie Switch, Foot Switch, Damper Pedal, Expression Pedal |
RATED POWER CONSUMPTION | 15W |
DIMENSIONS | 1004mm(W) x 322mm(D) x 109mm(H) |
WEIGHT | 9,4 kg |
ACCESSORY | AC Cord |
SKX PRO ... in comparison | |||
XK-1 | XK-1c | XK-4 | |
RELEASE | 2005 | 2013 | 2023 |
SOUND ENGINE | 2 Vase III | 2 Vase III | MTW2 (Modelled Tone Wheel 2) |
DISPLAY | 20 Characters, 2 Lines | 20 Characters, 2 Lines | Colour 320 x 240 pixel |
LESLIE-CONNECTION | 8-pin | 8-pin | 11-pin |
WEIGHT | 13,5 kg | 7,5 kg | 9,4 kg |

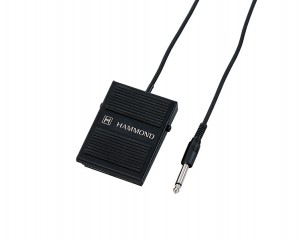

FS-9H | Footswitch for XK & SK-models / Leslie | ||

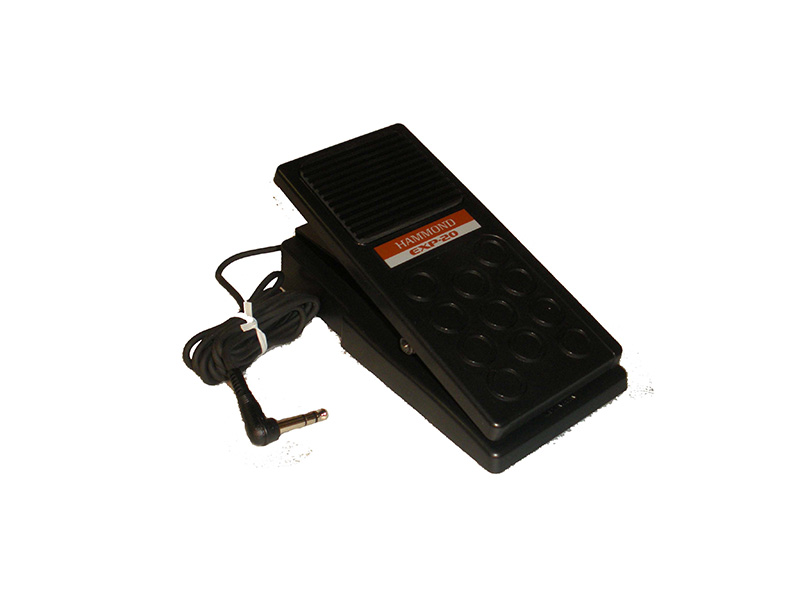

EXP-20 | Expression-pedal for XK-1c, XK-4 & SK-models | ||

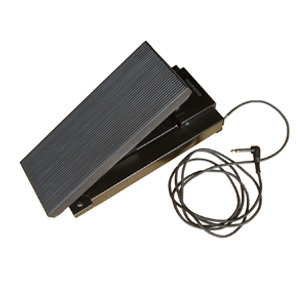

EXP-50J | Expression-pedal for XK & SK-models | ||

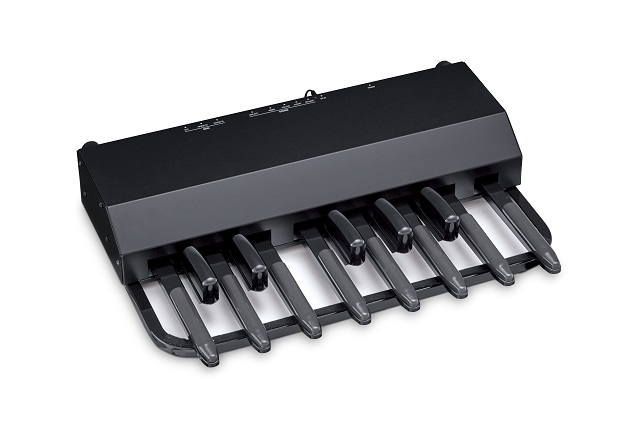

XPK-130G | 13-note Midi-pedalboard with tone-generator for XK & SK models | ||

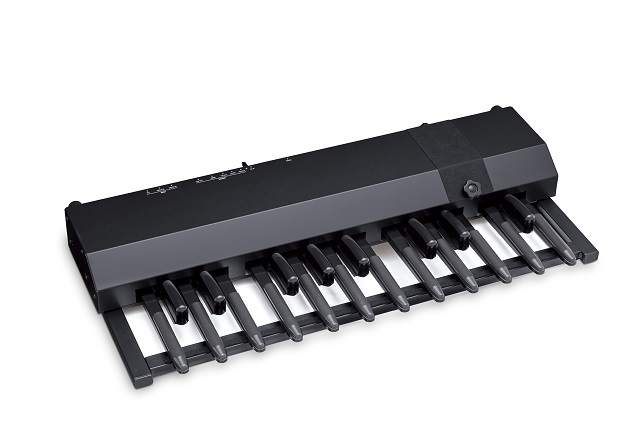

XPK-200G | 20-note Midi-pedalboard with tone-generator for XK & SK models | ||
XPK-200GL | 20-note Midi-pedalboard with tone-generator and long pedals for XK & SK-models | ||

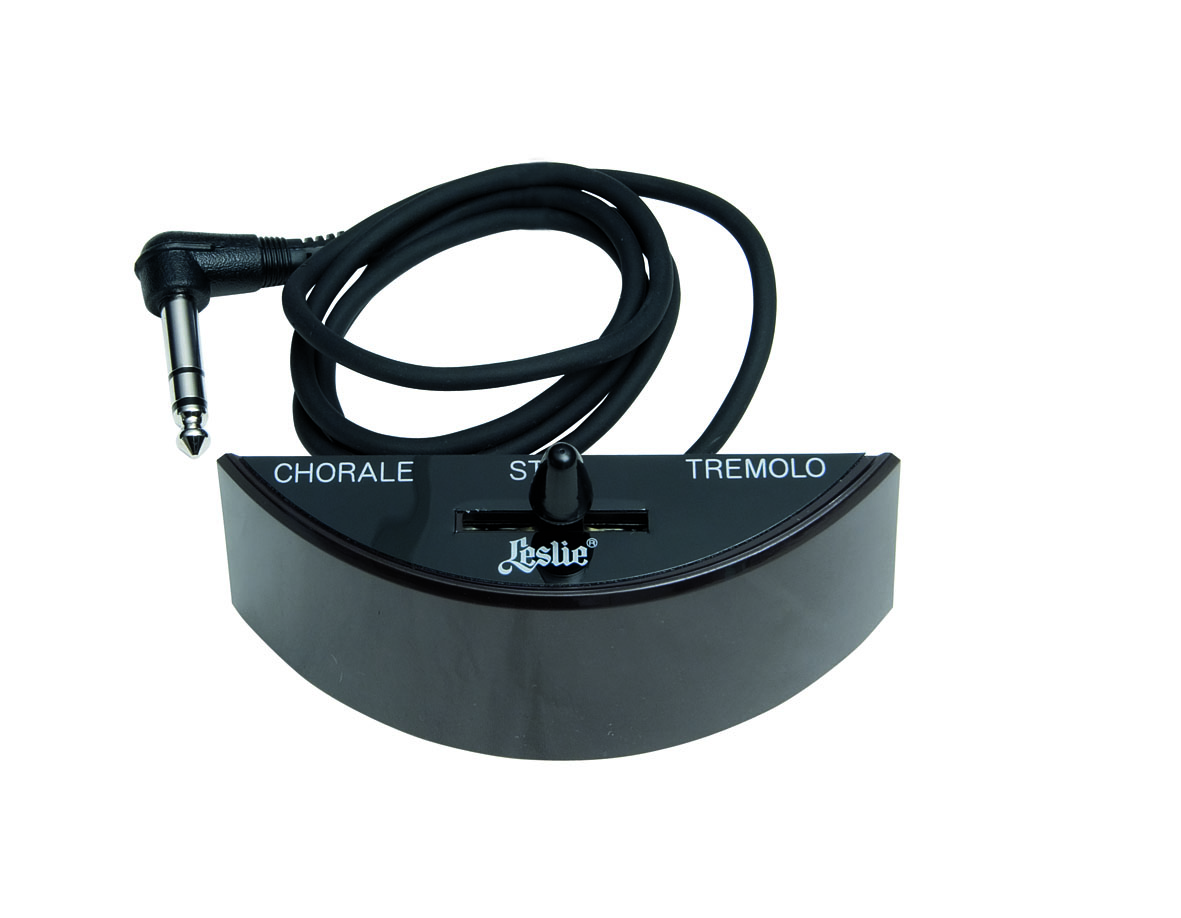

CU-1 | Leslie Control-switch fast/slow/off | ||

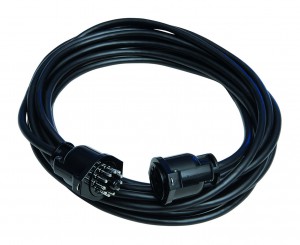

LC11-7M | Leslie Cable 11-pin 7m | ||
CU-1BK | Leslie Control-switch fast/slow/off in black | ||

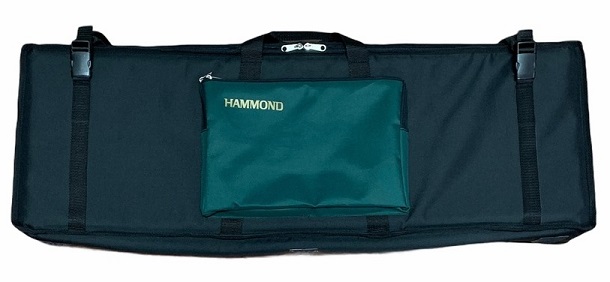

Softbag SKPRO61 | Softbag for XK-4 & SK PRO | ||

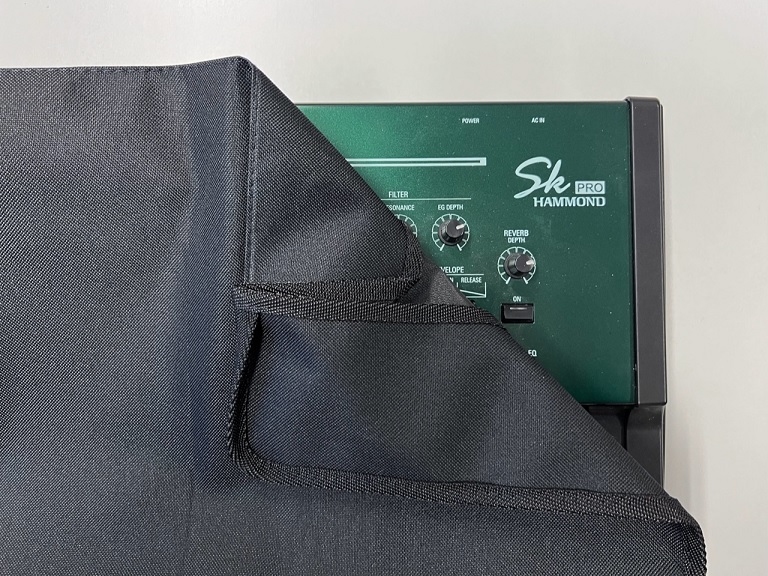

DCH-SKPRO | Dust-cover with Hammond-logo for XK-4 & SK PRO | ||

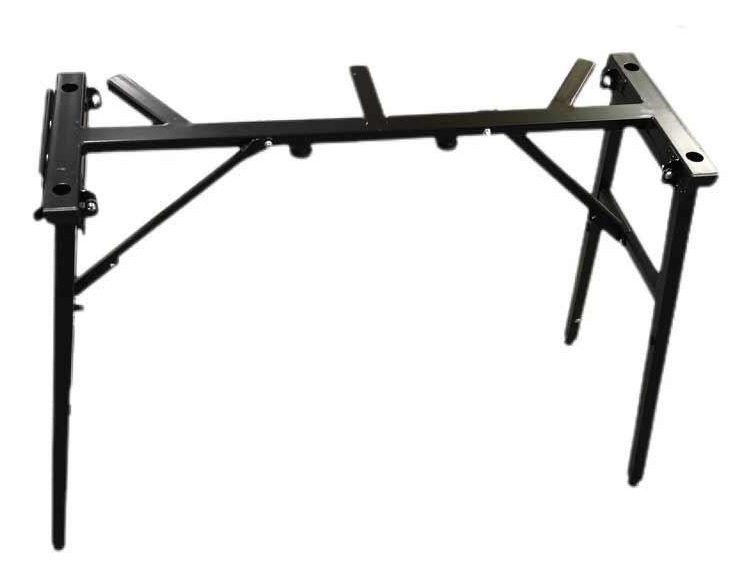

ST-SKPRO | Metal stand for XK-4 & SK PRO & SK PRO-73 | ||

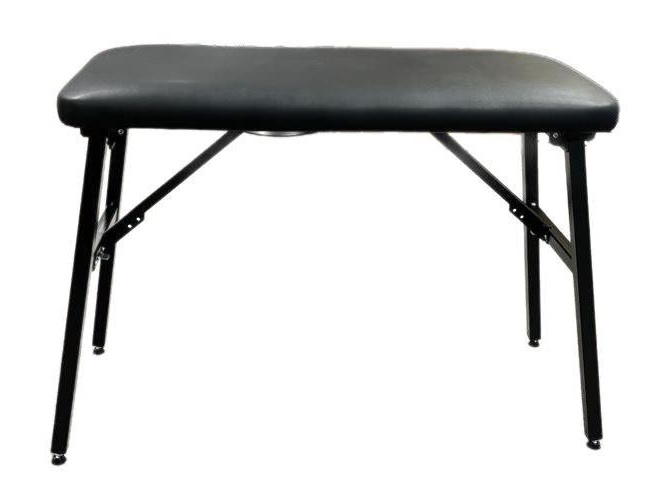

BCH-SKX PRO | Black metal bench for XK-4, SK PRO, SK PRO-73 and SKX PRO | ||

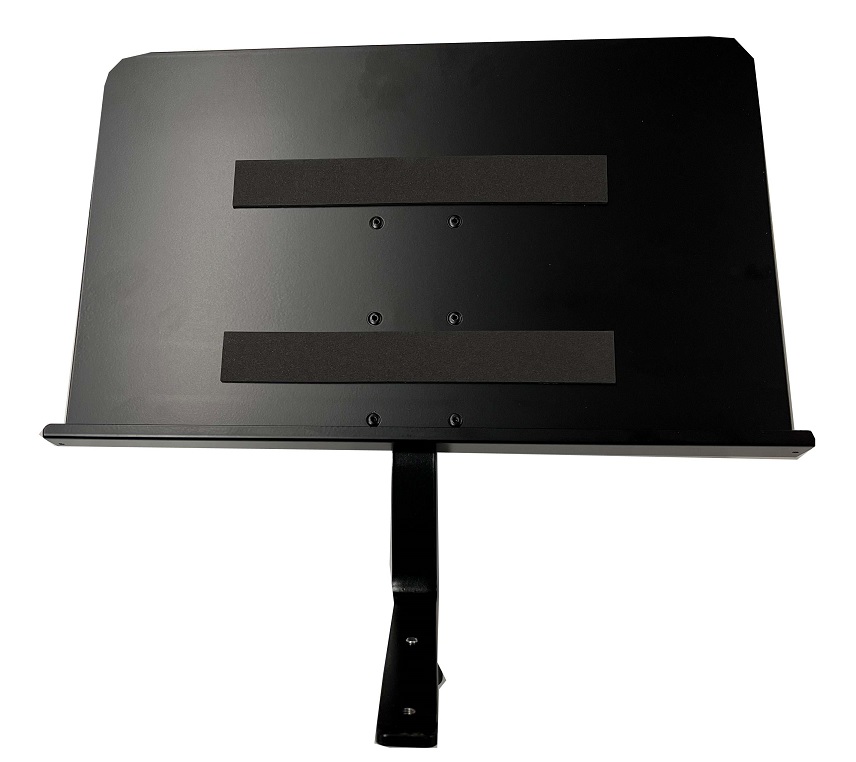

MR-SK(X)PRO | Music-rest for ST-SKPRO and ST-SKXPRO |
Support | ||
Type | Description | Action |
Reset | Reset the instrument to the factory-defaults | Power-off the instrument. Press and hold the red 'RECORD'-button and power-on the instrument. The display will show 'HAMMOND XK-4 Loading Default...' After a few seconds the display will again show the normal play-screen. |
