Specifications Leslie 142H | |
Type | 1-channel (Rotary), Mechanical Rotors |
Power Output | 40W Tube amplifier |

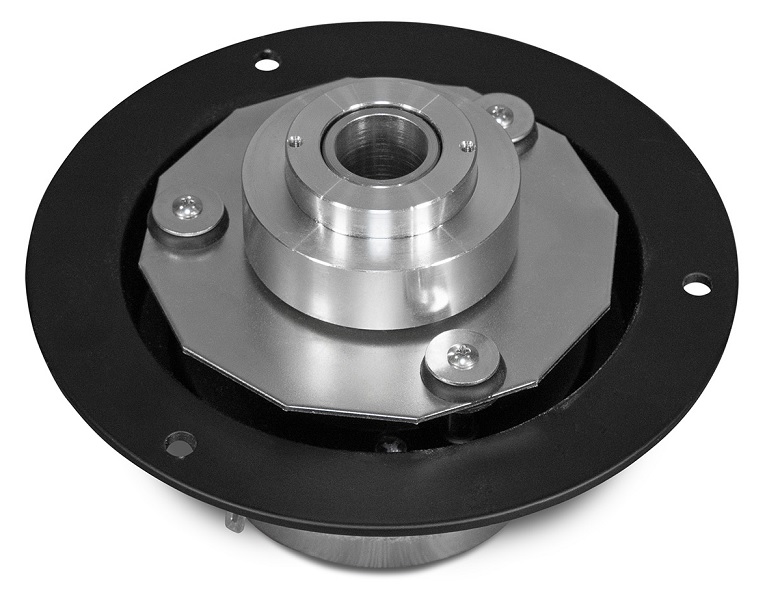

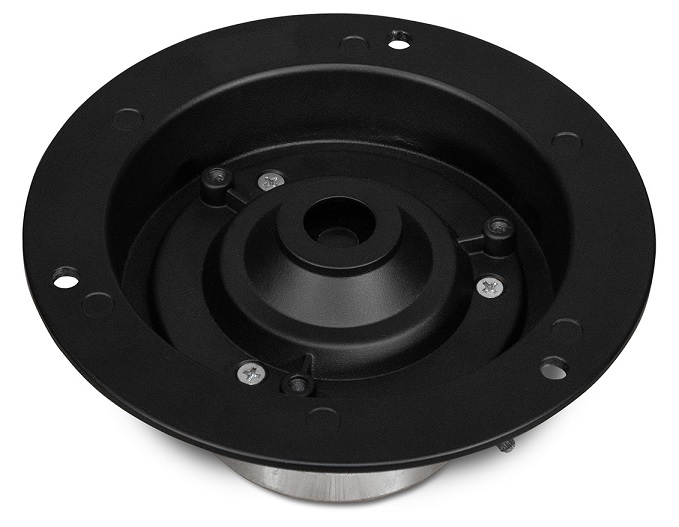

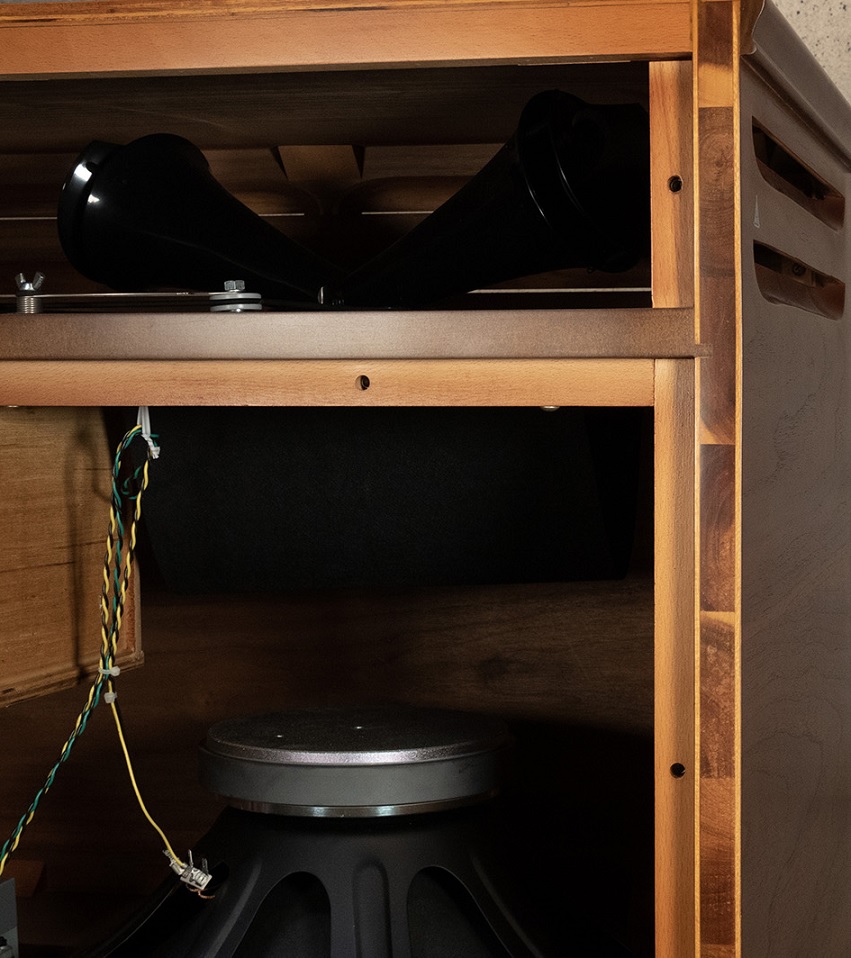

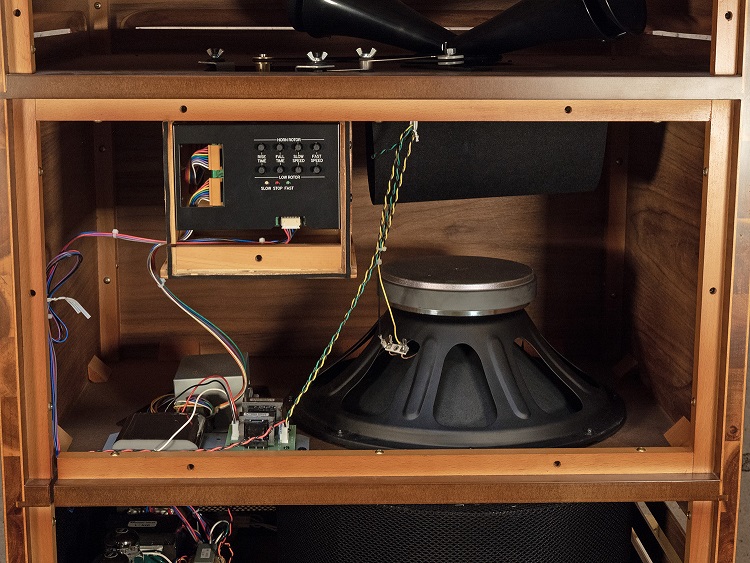

Speakers | Horn: High-compression driver Low: 15" (38cm) Woofer |

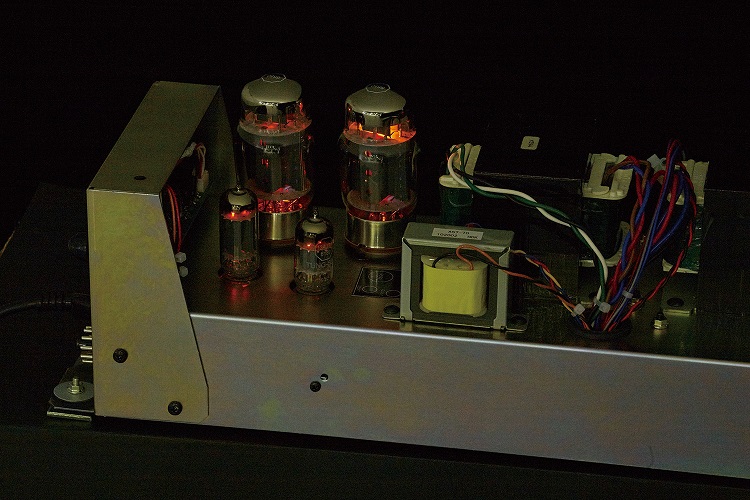

Vacuum Tubes | Preamp: 12BH7 x 1 Power amp:12AU7 x 1, 6550 x 2 |
Control | Volume: Master Volume Switch: POWER Switch, FOOT SW Type, 11-pin Power Remote, 6-pin DIN control, Type |
Motor | Brushless DC Servo Motor x 2 |

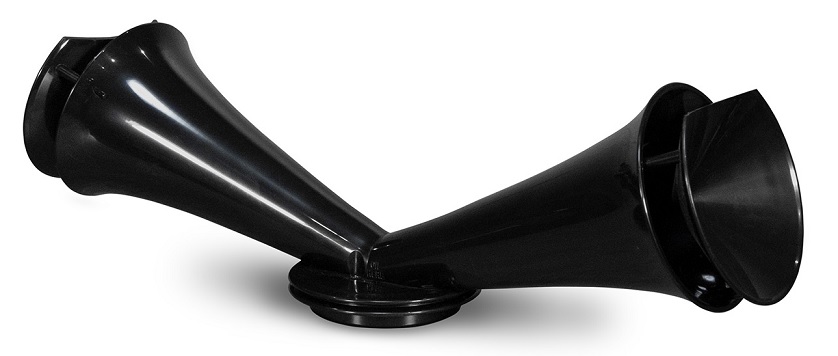

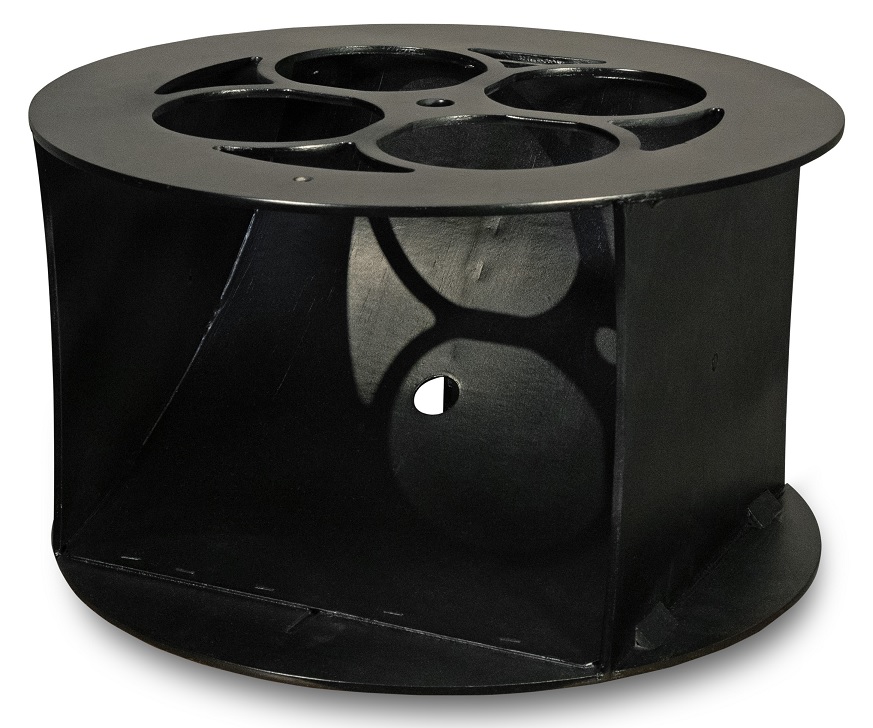

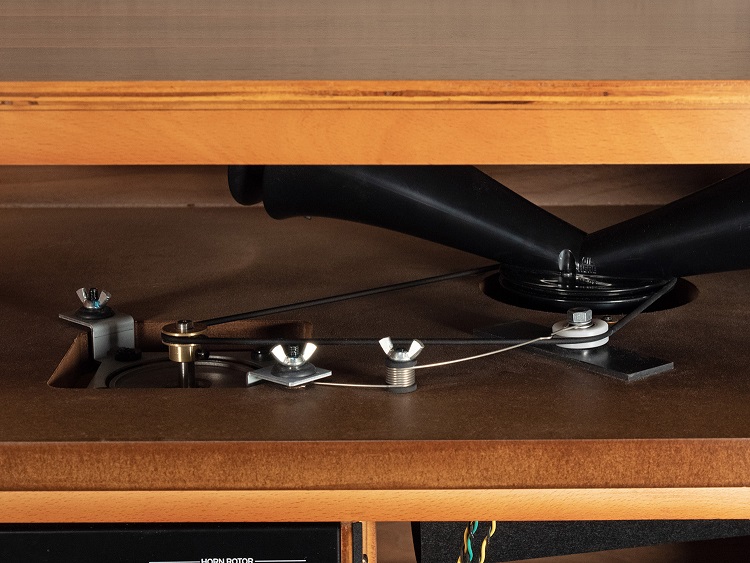

Rotor | Horn Rotor, Wooden Low Rotor |

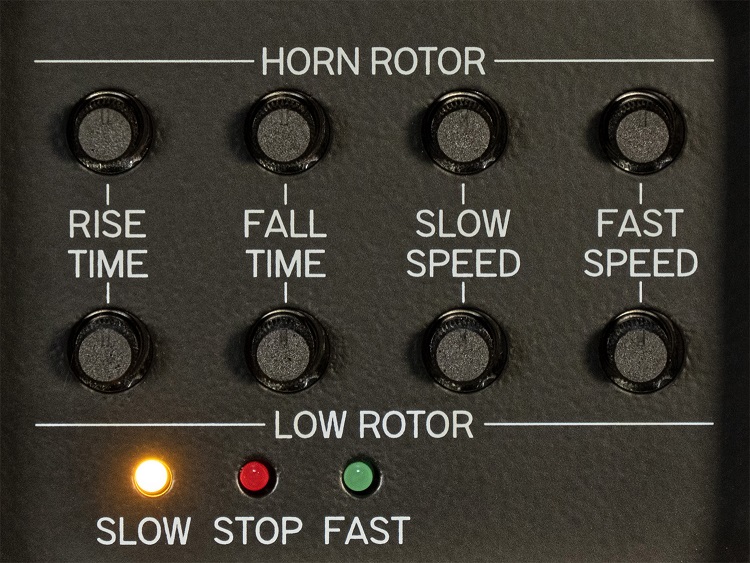

Rotor Adjust | Horn: Rise Time, Fall Time, Slow Speed, Fast Speed Low: Rise Time, Fall Time, Slow Speed, Fast Speed |
Led | Slow, Stop, Fast |

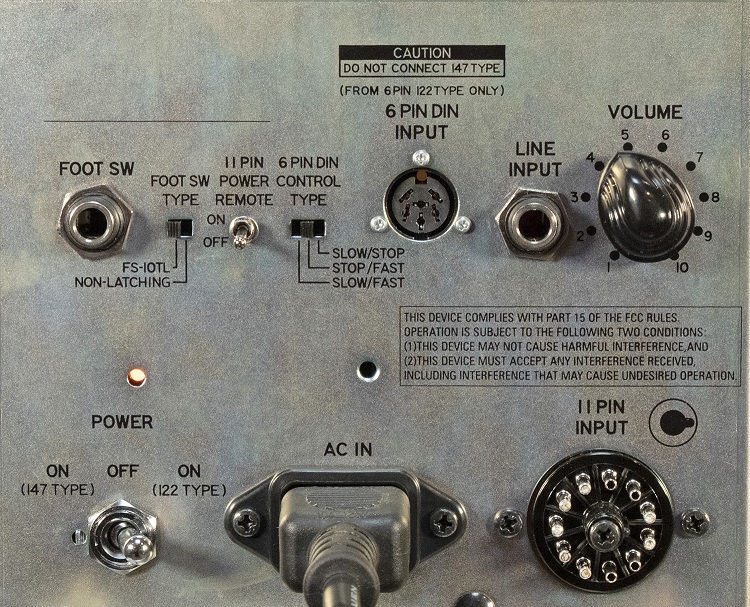

Connectors | 11-pin Input 6-pin DIN Input ¼" Line-input jack (Impedance 10K Ohm Sensitivity 100mV (-18dBu) Foot Sw (Slow/Fast/Stop) AC Inlet |
Power Consumption | 160W |
Dimensions | 74,2cm(W) x 52,4cm(D) x 84,6cm(H) |
Weight | 54 kg |

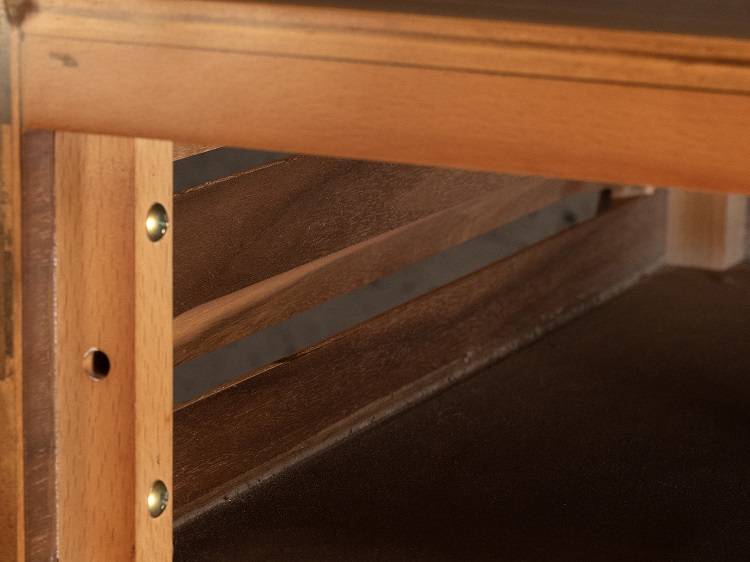

Finish | Walnut |
Optional | 11-pin Leslie Cable LC11-7M 6-pin to 6-pin DIN Adapter Cable LCA-66 Foot-switch FS-9H |

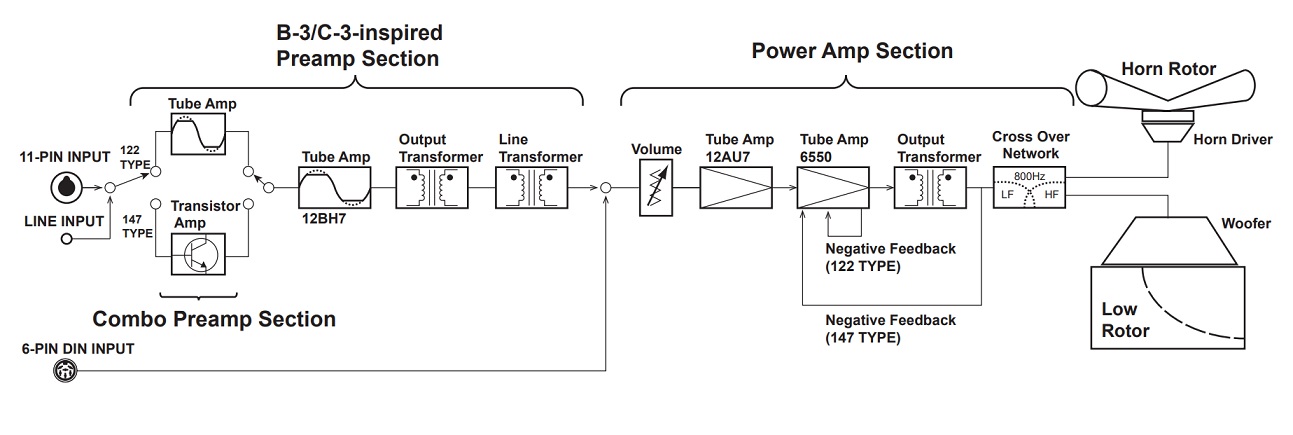

Block Diagram | ![]() |
![]() |
![]() |
| LC11-7M | Leslie Cable 11-pin 7m | |
| FS-9H | Footswitch for XK & SK-models / Leslie |
The Leslie 142H is a traditional "low-boy" cabinet with dual circuits switchable between 122 & 147 circuits for two unique sounds.
